- 【1000nits Daylight Viewable Panel】Lilmon 5 utilizes a 1000nits panel with low reflection, anti-fingerprint coating, and a high-efficiency backlight unit. It offers 10-bit color, 1000:1 contrast ratio, standard D65 color temperature and eliminates the need for a cooling fan. Lilmon 5 ensures a crisp image for outdoor shooting, unlocking your creative potential in every situation.
- 【Pristine and Crisp Image Quality】Lilmon 5 employs the same powerful color management engine as osee’s high-quality field monitor. With 22 bits of internal processing, this color engine delivers precise color and tone rendering, enhancing fine shadow and skin tone details. Osee’s HDR/LOG mapping technology accurately maps HDR/LOG signals from nearly all camera models to display panel, ensuring correct color and tone reproduction.
- 【Super Convenient Touch Swift OS】Swift OS offers multiple customizable Mysets that streamline crucial footage checking tasks such as framing, exposure, and focus checking. Switching between different Mysets is as simple as a single swipe, eliminating the need to dig into menus while shooting.
- 【Reliable Build for On Set Life】 Despite its lightweight design, Lilmon 5 features a sturdy polycarbonate housing with a built-in aviation aluminum plate. The 1/4” screw holes are reinforced with metal and paired with anti-rotation pin holes, ensuring reliability on set.
- 【Versatile for All Shooting Scenarios】Lilmon 5 can be easily mounted on any camera configuration using its torque-adjustable tilt arm or other cold shoe mountings. It can be powered by a Sony NPF battery at the back or a V/AB mount battery via an optional DC to D-tap cable. Its compact size and light weight make it ideal for gimbals. Additionally, the camera can be powered by its battery through the DC out port.
- 【Pro Color Calibration At Home】 Lilmon 5 supports on-location calibration with X-Rite probes and osee specialized calibration software, color fidelity can be easily accessed at home, no more color drifting over time, so you can monitor with confidence at any time!
Product Description

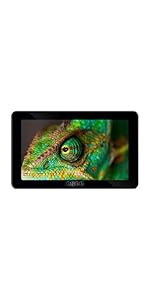

The Little Monitor That Could
Designed for photographers, v-loggers, and content creators, Lilmon 5 HDR monitor doubles the brightness of typical entry level monitors to 1000 nits, which meets the minimum brightness requirement for outdoor video production.
Lilmon 5 is a touch screen monitor and features osee’s brand new Swift OS that can seamlessly fits into a creative’s workflow and enhances production efficiency.
What’s more, Lilmon 5 supports on location calibration which is a feature that only can be seen on a premium model, with X-Rite probes and osee specially designed calibration software Osee Calibrator, color fidelity can be easily accessed at home, preventing color drifting over time.
OVERVIEW
|
|
|
|
|---|---|---|
1000nits Daylight Viewable PanelLilmon 5 utilizes a dedicated 1000nits touch panel with low reflection, anti-fingerprint coating, and a high-efficiency backlight unit. This panel offers excellent outdoor visibility, 10-bit color precision, 1000:1 contrast ratio, standard D65 color temperature, and eliminates the need for a cooling fan. It ensures a crisp image for outdoor shooting, unlocking your creative potential in every situation. |
Pristine and Crisp Image QualityLilmon 5 employs the same powerful color management engine as osee’s high-quality field monitor. With 22 bits of internal processing, this color engine delivers precise color and tone rendering, enhancing fine shadow and skin tone details. Osee’s HDR/LOG mapping technology accurately maps HDR/LOG signals from nearly all camera models to display panel, ensuring correct color and tone reproduction. |
Super Convenient Touch Swift OSSwift OS offers up to 8 customizable Mysets that streamline crucial footage checking tasks such as framing, exposure, and focus checking. Switching between different Mysets designed for specific checks is as simple as a single swipe, eliminating the need to dig into menus while shooting. On each Myset, you can add up to 8 video assisting tools and their settings are all customizable too. |
|
|
|
|
|---|---|---|
Reliable Build for On Set LifeDespite its lightweight design, Lilmon 5 features a sturdy polycarbonate housing with a built-in aviation aluminum skeleton. The 1/4” screw holes are reinforced with metal and paired with anti-rotation pin holes, users can tilt and rotate the monitor without worrying breaking anything. The tilt arm has a torque adjusting screw designed just for rotation tightness, thus the rotation won’t loosen the mounting at all. |

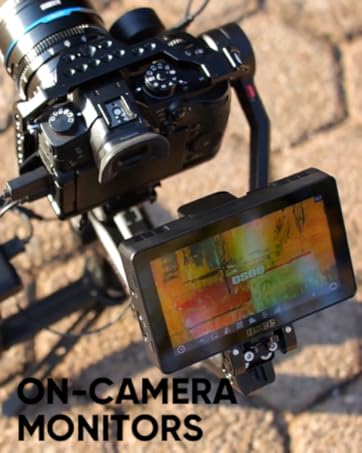

Versatile for All Shooting ScenariosLilmon 5 can be easily mounted on any camera configuration using its torque-adjustable tilt arm or other hot shoe mountings. It can be powered by a Sony NPF battery at the back or a V/AB mount battery via an optional DC to D-tap cable. Its compact size and light weight make it ideal for use with gimbals. Additionally, the camera can be powered by its battery through the DC out port. |
Pro Color Calibration At HomeLilmon 5 supports on-location calibration with X-Rite probes and osee specially designed calibration software Osee Calibrator, therefore color fidelity can be easily accessed at home, preventing color drifting over time. With this feature, users can ensure that their Lilmon 5 always present accurate and natural colors from what they see in real scene and monitor with confidence at any time! |
PRO VIDEO ASSISTING TOOLS
|
|
|
|
|
|---|---|---|---|
Nailing FrameAspect supports common aspect ratios for horizontal and vertical videos, and custom ratios from 1:3 to 3:1. Safe is a tool for displaying the action and title safe areas. Center is used to display a center marker of the frame. Cross Hatch can display a grid of 2×2 to 9×9 lines to help you get a better composition. Anamorphic De-squeeze helps de-squeeze the videos shot by anamorphic lens, supported ratios are 1x/1.33x/1.5x/1.66x/1.8x/2x and there’s a magnify function to magnify the image. |
Nailing ExposureFalse Color Lilmon 5 supports false color calculated for different camera curves and it also supports custom false color. Zebra supports custom tone ranges defined by users. Waveform supports LUMA, RGB and Parade mode, the density of the graph is also adjustable. Histogram displays a brightness graph like the histogram on your camera. Vector Scope can display the saturation level of a certain color target, choosing 2x for GAIN can exaggerate the graph and make it more obvious. |
Nailing FocusFocus Assist helps focus by marking areas that are in focus with different colors, there are total three colors blue, red and green for the mark. Just in case they are still not outstanding from the background, you can turn the image to black&white to make the marks more evident. Peaking helps focus by increasing the “sharpness” of input image to exaggerate the contrast. There are 10 levels for increasing the “sharpness”, with more higher level, you can see the contrast of each part of the image more clearly. |
Nailing Look&OthersDe-log Use De-log to apply a standard color grade for different camera LOG/HDR profiles. User LUT Use User LUT to apply a custom color grade on the signal. Up to 10 user LUTs can be uploaded into the monitor by an SD card (FAT32, under 16G). T5+ also supports User LUT intensity adjustment. Zoom/Pan/Rotate/Mirror Lilmon 5 offers 1-4x zoom by two fingers and pan by one finger. It can turn the image 180 degrees vertically, manually or automatically. Mirror is for turning the image 180 degrees horizontally. |
FAQ
Q: I have trouble turning on or off my monitor?
A: After connecting to DC or battery power, single click the power button to turn on, long press for 3 seconds to turn off.
Q: Touch is not working?
A: When the monitor is on, single click the power button to see if your screen lock is on.
Q: I don’t have a certain function?
A: Please check if the firmware of your monitor is the latest, if not, download according to QSG or Service Card.
Q: The monitor can’t recognize my SD card?
A: Please use an SD card that is under 32G and formatted to FAT32.
What’s In The Box
- Monitor x1
- Tilt Arm x1
- Quick Start Guide x1
- Service Card x1
- Clean Cloth x1
- Replacement O-type Ring x3
- DC Port Cover x2
 |
 |
 |
 |
|
|---|---|---|---|---|
| Osee Lilmon 5 | Osee T5+ | Osee T7 New | Osee G7 | |
| Screen Size | 5.5 inch Touch Screen | 5.5 Inch | 7 Inch | 7 Inch |
| Brightness | 1000 nits | 1000 nits | 3000 nits | 3000 nits |
| Resolution | 1920×1080 | 1920×1080 | 1920×1200 | 1920×1200 |
| Contrast Ratio | 1000:1 | 1000:1 | 1200:1 | 1200:1 |
| Package | 1×Monitor, 1×Tilt Arm, 1×Clean Cloth, 3x Replacement O-type Ring, 2x DC Port Cover | 1×Monitor, 1×Tilt Arm, 1×Sun Hood, 1×HDMI-Micro Cable, 1×HDMI-mini Cable | 1×Monitor, 1×Ball Head, 1×D-tap to Lockable Pole DC Cable, 1×AC-DC Power Adaptor | 1×Monitor, 1×Screw Articulating Arm Trestle, 1×D-tap to Lockable Pole DC Cable, 1×AC-DC Power Adaptor, 1×V mount Battery Plate, 1×Sun Hood, 1×Carrying Case |
| Color Calibration | Calman Or Osee calibrat with Xrite i1 Display Pro/Plus | Calman with Xrite i1 Display Pro/Plus | Calman with Xrite i1 Display Pro/Plus | Calman with Xrite i1 Display Pro/Plus |
| Battery | Not Include | Not Include | Not Include | Not Include |
| Firmware update | ✓ | ✓ | ✓ | ✓ |
| Weight | 212 g | 175g | 438g | 450g |
From the brand
-
Osee has been a leading brand of monitoring products for filmmakers & broadcasters since 2001. Osee emphasizes innovation and technology while maintaining high standards for product quality and service.
Helping filmmaker to get better quality image, facilitating their work flow and expressing their creative and imagination without boundary serve our highest priority.
-
