- The instruction manual is in both English and Chinese versions. 【Widely used】 Measurement visible brightness, measurement range is wide.Can be widely used in such as schools, hospitals, factories, airports, families and other occasions of brightness measurement.
- 【Unit switch】llumination:200000LUX,1FC=10.76LUX;Unit:LUX、FC.Press MODE key to convert illuminance unit( LUX/FC ).
- 【Measurement time】S
- 【MAX/MIN】Press the RANGE key to measure the MAX ,MIN;
- 【Data HOLD】Press the HOLD key to enable/disable data retention;
- 【Backlight function】Press the backlight button to turn on/off the backlight;
- 【Auto Power Off】The meter will automatically shut down 5 minutes after starting to save power;
- 【Low-battery indicator】When the battery voltage decreases to a certain level, the battery symbol in the upper right corner of the display lights up, and the battery should be replaced
Product Description

Summary

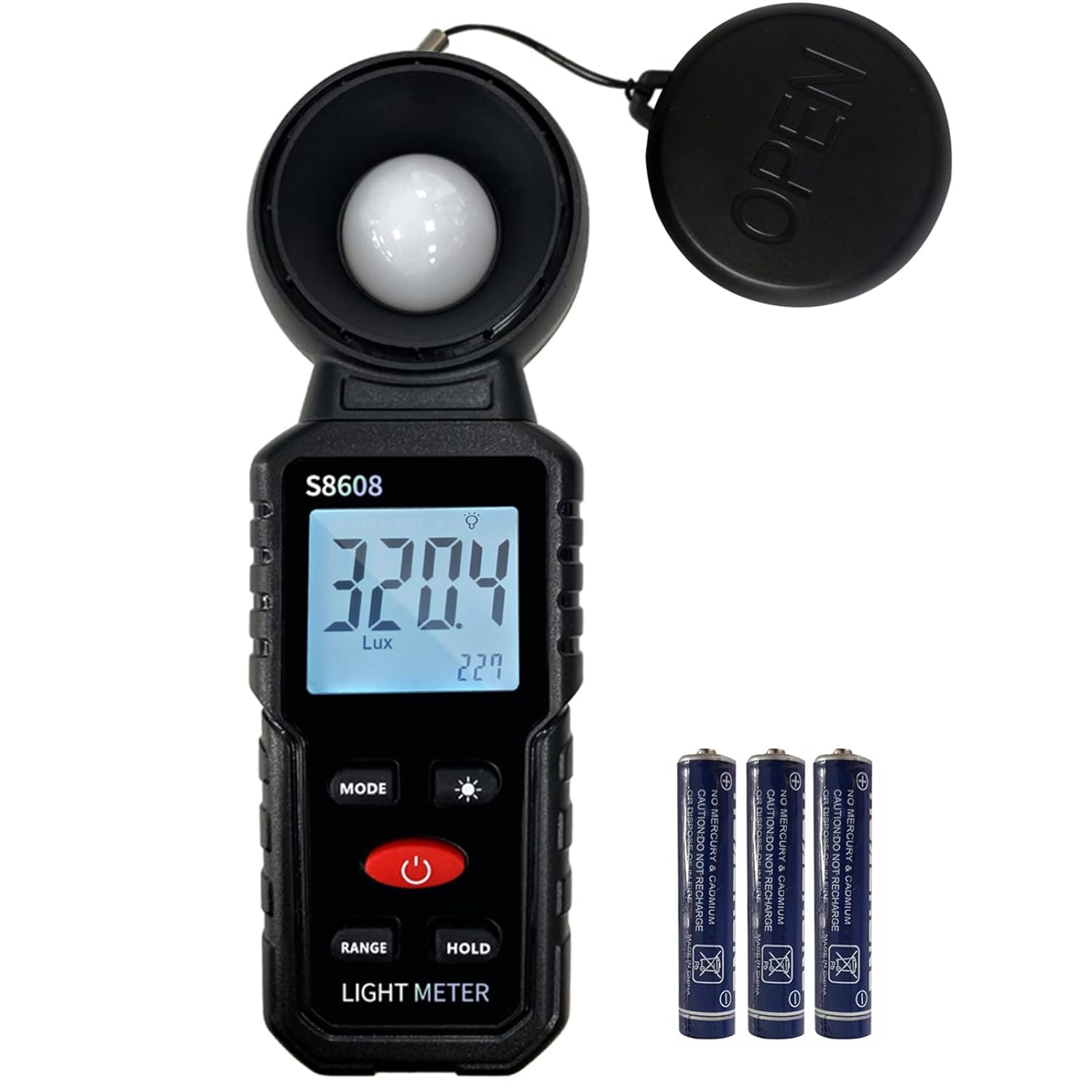

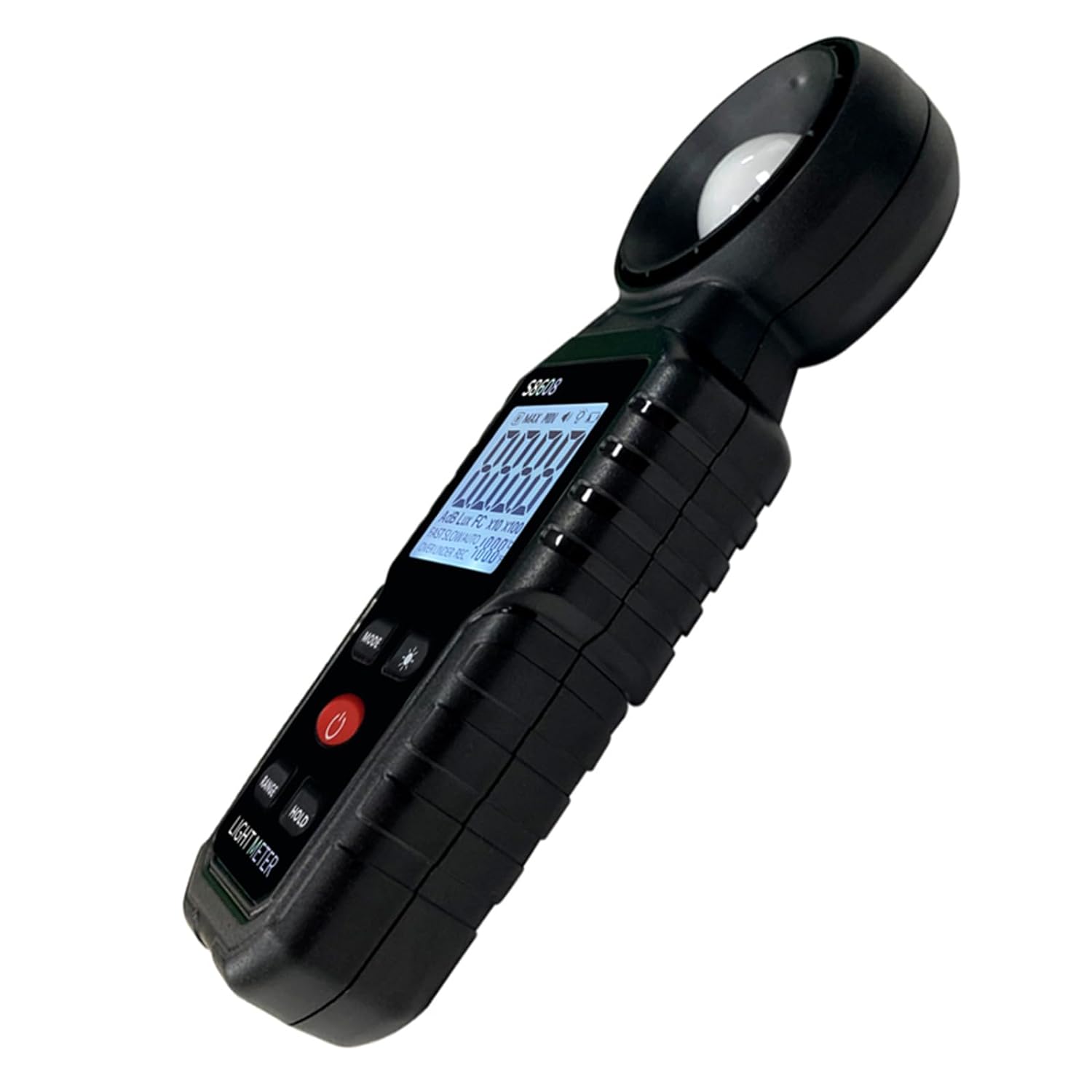

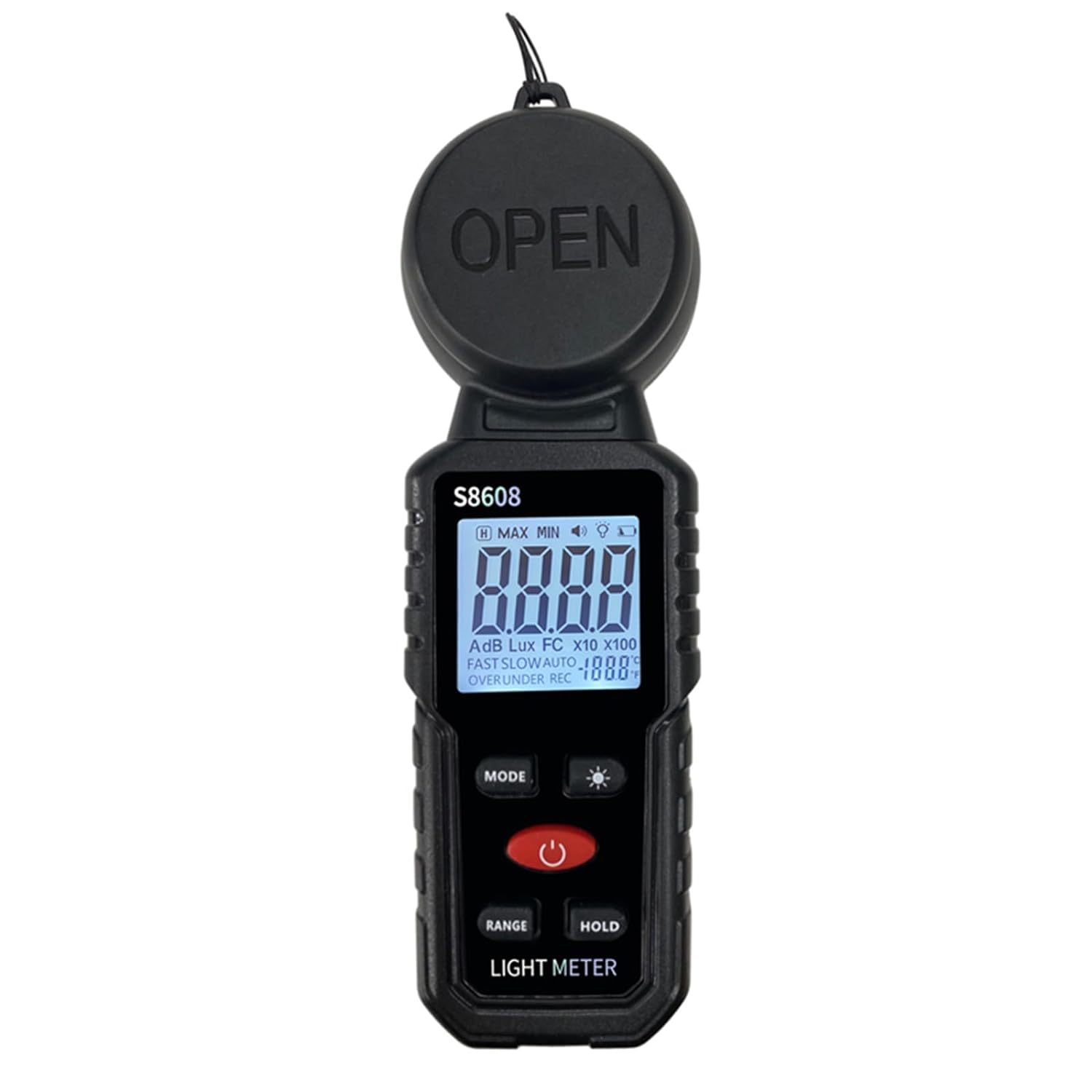

S8608 is a digital illuminometer, used for measuring visible brightness, large screen display,wide measuring range up to 200000LUX, automatic conversion range. Can be widely used in such as schools, hospitals,factories, airports, families and other occasions of brightness measurement.
- The instruction manual is in both English and Chinese versions.

Features
– Measurement visible brightness, measurement range is wide
– Illuminance unit switch
– Unit of illuminance:LUX、FC
– Measurement time: S
– MAX/ MIN
– Data HOLD
– Backlight function
– Auto Power Off function
– Low-battery indicator




Technical Index
Display | LCD Display |
llumination sensor | Photodiode and filter |

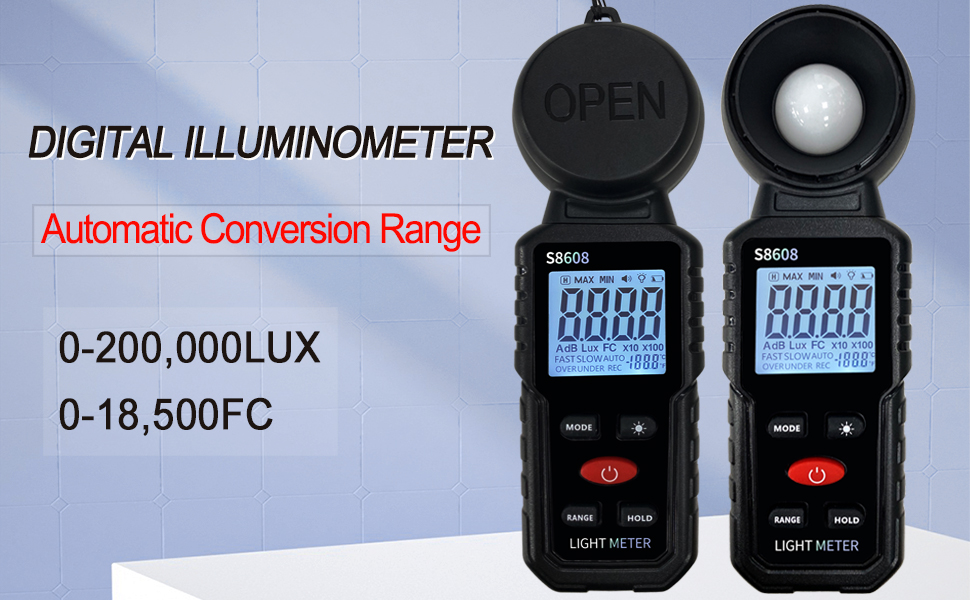

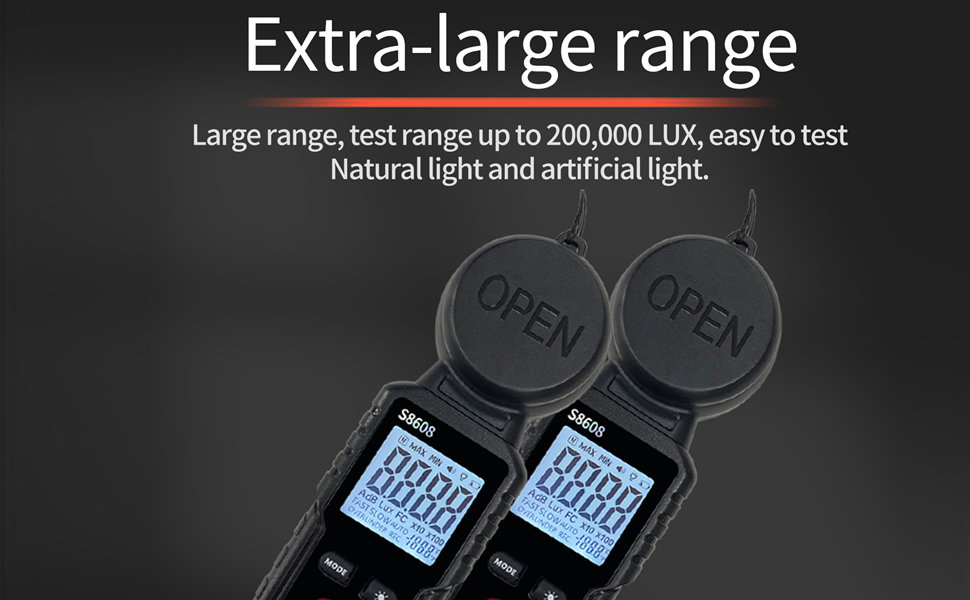

Measuring Range | llumination:200000LUX,1FC=10.76LUX |
Accuracy | ±3%±10dgts(<10000LUX); ±4%±10dgts(>10000LUX) |
Repeated Testing | +/-2% |
Tsample | 0.5S |
Spectral Response | Comply with CIE photopic (Visual function) standard |
Operational Environment | -10~+50℃,≤80%RH |
Storage Conditions | -10~+50℃,≤70%RH |
Battery | 1.5V AAA x 3 |

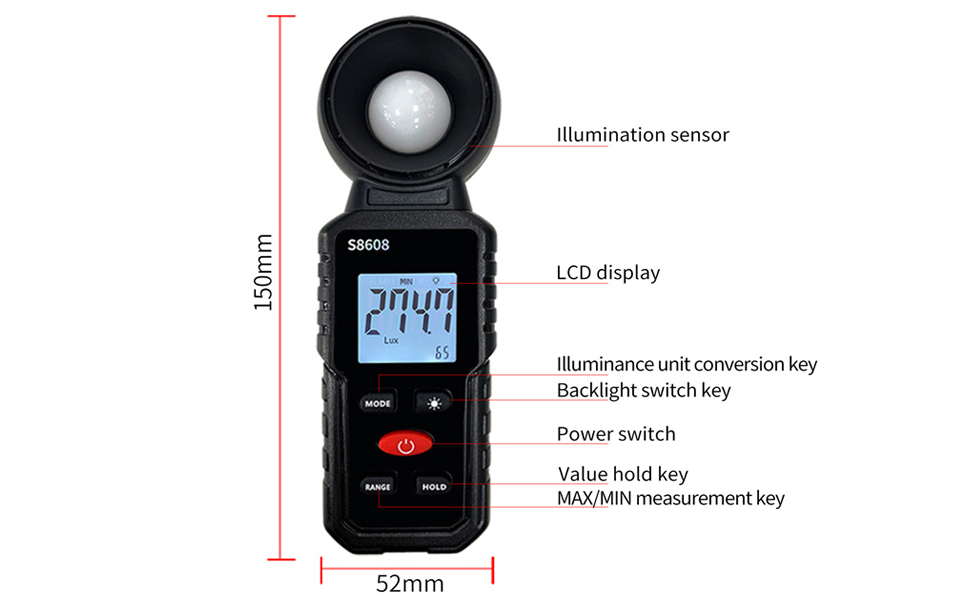

Boundary Dimension | 150x52x30mm |
Weight | 110g |
